GW70105 25rpm DC 12V 550N*cm Low speed High Torque Worm Geared Reduction Electric Motor for Windshield wiper Barbecue motor

GW70105 25rpm DC 12V 550N*cm Low speed High Torque Worm Geared Reduction Electric Motor for Windshield wiper Barbecue motor
  • Продавецtampabaybuccaneersvsminnesotavikings.us
  • Список ценUS $105.00piece
  • Продажная ценаUS $105.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,8 (946)

Oписание продукта



\\

Motor has three-phase 380V, three-phase 220V, single-phase 220V, single-phase 110V,No special instructions, the company made the default three-phase 380V motor,When the pro please take the deceleration ratio you need to write in the note,Want to know do not know



\\

\\The motor speed is 1400 rpm, and the reduction ratio is as below\\

5 to 1, 7.5 to 1, 10 to 1, 12.5 to 1, 15 to 1, 20 to 1, 25 to 1, 30 to 1, 40 to 1, 50 to 1, 60 to 1, 75 to 1,100 1,120 to 1,150 to 1



\\\\



\\



\\

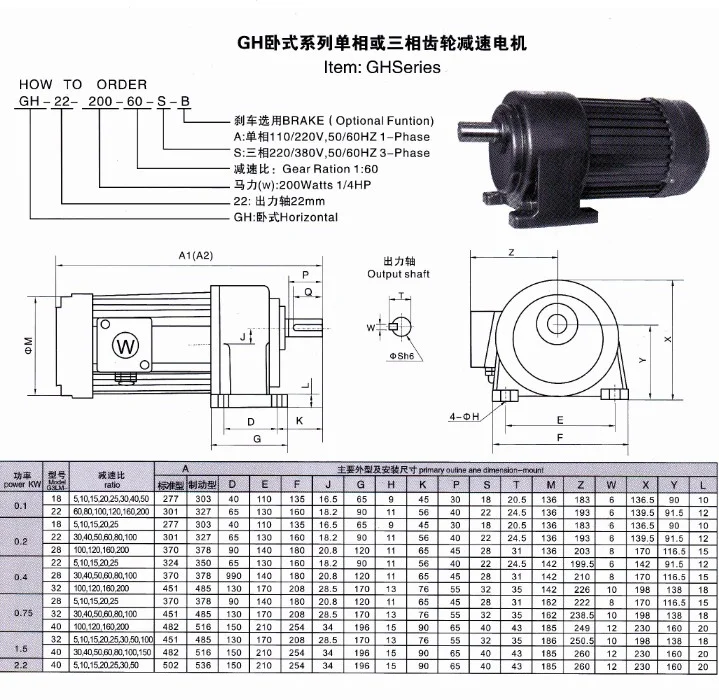

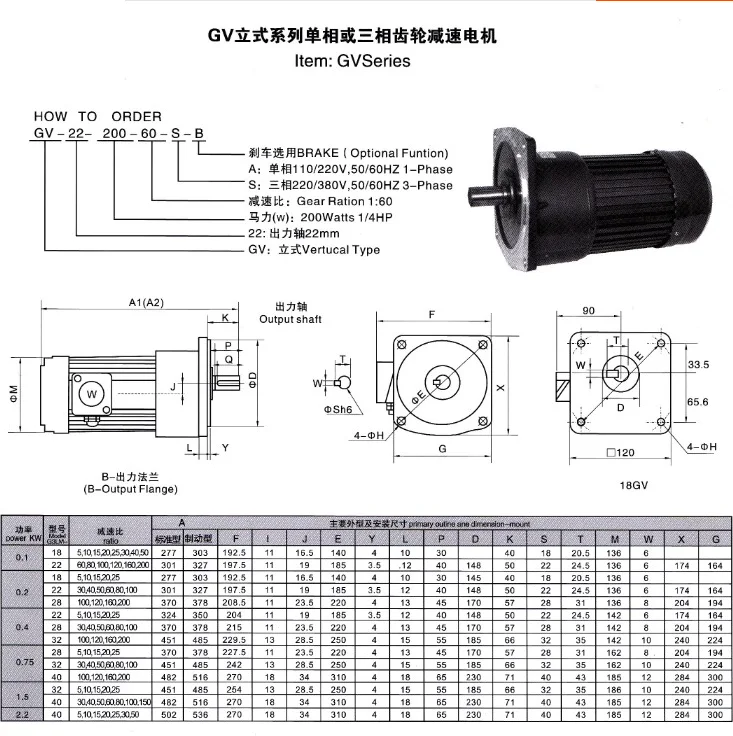

Horizontal GH vertical GV

\\

\\



\\

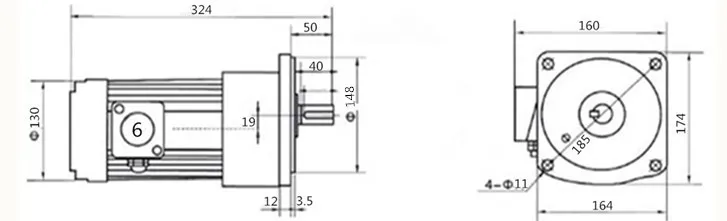

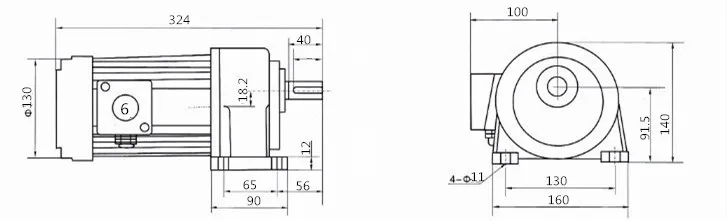

 Motor output shaft 22MM dimension drawing

\\

200W 370W 550W

\\

\\
