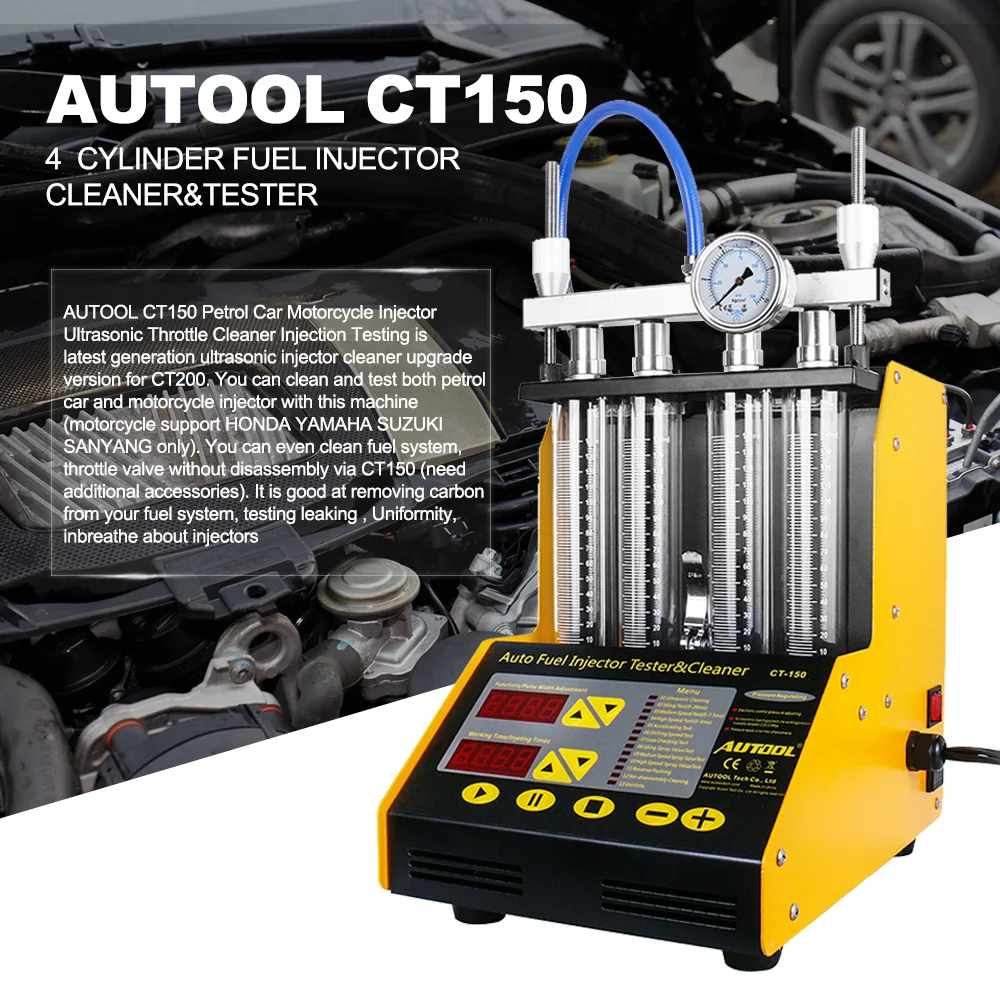

AUTOOL CT150 Petrol Car Motorcycle Injector Ultrasonic Throttle Cleaner Injection Testing




This is the latest generation ultrasonic injector cleaner, upgraded version from CT200.



We can cleaning and testing both petrol car and motorcycle injector with this machine.

(motorcycle support HONDA YAMAHA SUZUKI SANYANG only)




We can even clean fuel system, throttle valve without disassembly via CT150 (need additional accessories)




It is good at remove carbon from your fuel system, testing leaking ,Uniformity,inbreathe about injectors.



ct150_01











Main Function:




A Cleanning petrol injector with ultrasonic



B Cleanning spark plugPut spark plug into cleaning tank ,input clean fluid and begin clean



C Testing injector injection in different situation, check leaking and blocking



D Cleanning injector without disassembly (need extra accessory and extra fee,choose by yourself)



E Cleanning throttle valve without disassembly. (need extra accessory and extra fee,choose by yourself)





F Standard config for top feed injector only (side feed injector adapter need extra fee, choose by yourself



G Cleanning and test motorcycle injector,testing function for HONDA YAMAHA SUZUKI SANYANG injectors only, (need extra accessory and extra fee,choose by yourself)







ct150_02

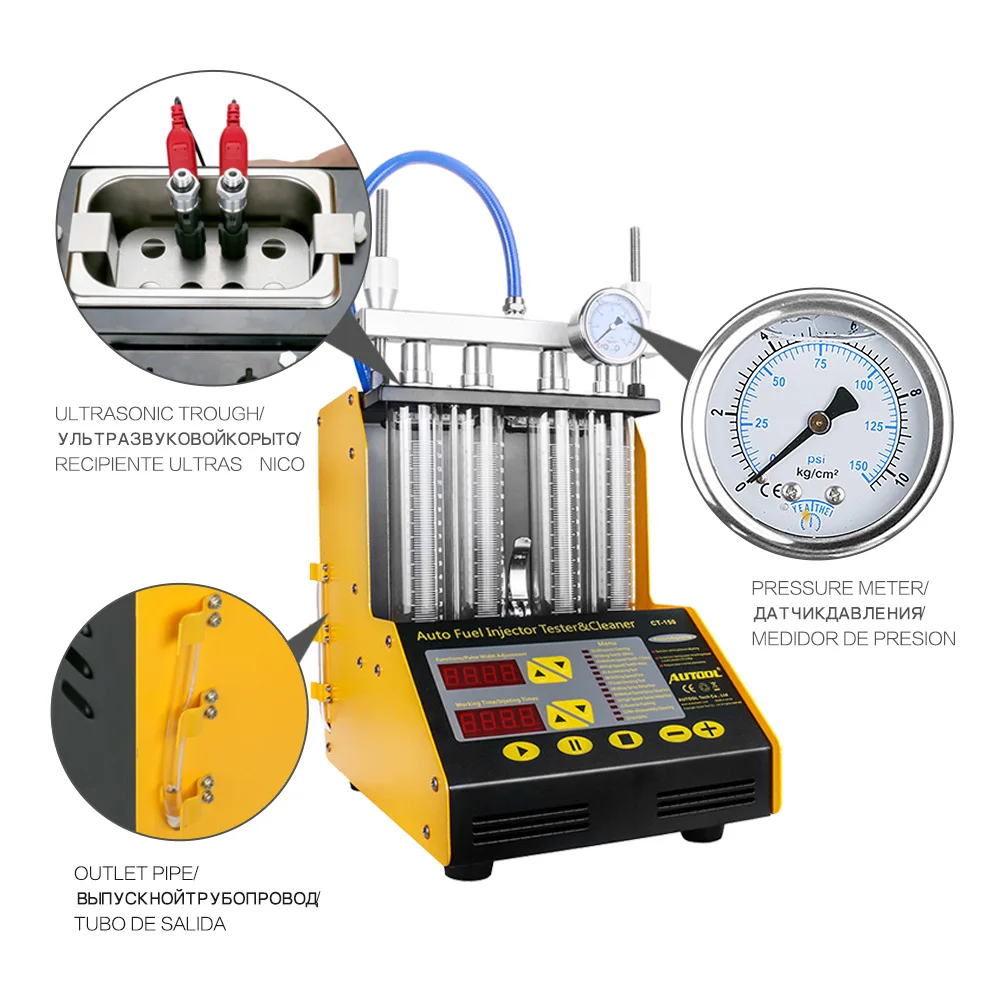

FEATURES:




1. LED display;




2. Ultrasonic cleaning trough built-in;




3. Tool trolley make it more conveniently to operate;




4. Equip with high quality SIEMENS pump, make it endurable;




5. Discharging fluid more quickly, add 2 value in front of machine.









Notice :




1. We have two version 110V and 220V ,when u make order please tell us which one you\'d like to choose.



2. This one was for 4 cylinder car (It will fit for 2 cylinder after blocking two test tube )



3. The machine work on petrol injector, not for diesel injector



4. Motorcycle injector testing for HONDA for YAMAHA for SUZUKI for SANYANG only(adapter need extra fee ),




customization special adapter for your motorcycle, please contact us.

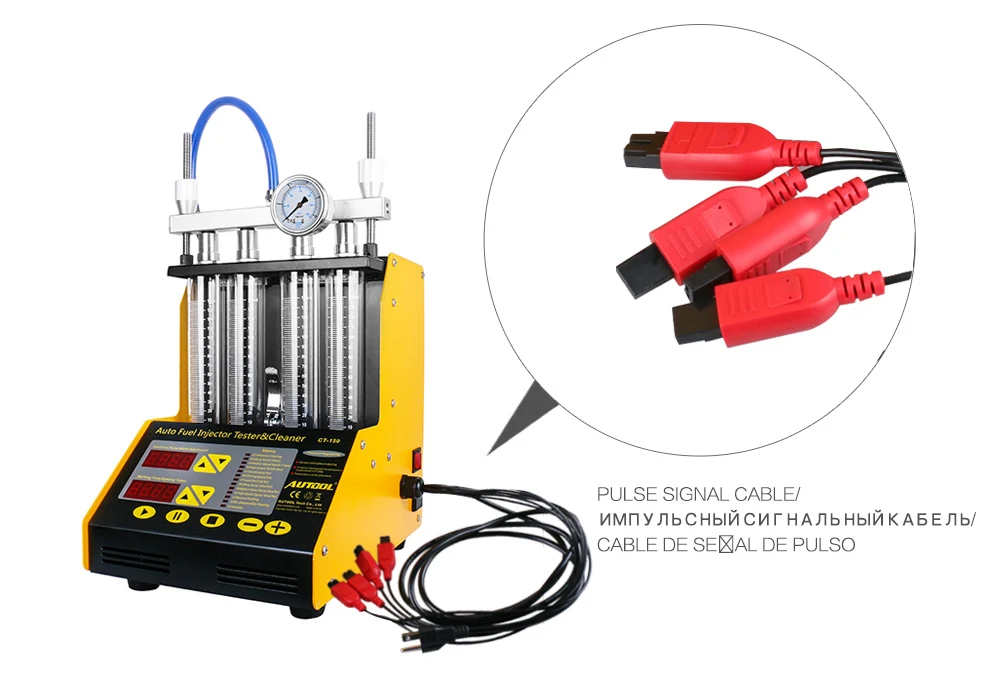

5.Convert cable come with machine, please try to use the convert cable if pulse cable can not match your injector



ct150_03ct150_04

The CT150 cleaning machine how to work:




1. Clean injector\'s outside with gasoline or cleaning liquid before open machine.




2. Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.




3. Turn on ultrasonic systempulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors.




4. Fixed injectors on main machine.




5. Testing injectors for resistance, shorts, and current draw.




6. Performing leak test, spray pattern, and flow rate testing on flow bench.




7. The injectors are now returned to the flow bench for retesting of all functions.



ct150_05







Working Condition:



  Power supply: AC220V±10%



  Frequency: 50HZ±0.5



  Humidity: <85%



  Environment Temperature: 0℃~+40℃



  Magnetic Field: <400A/m



  Spark and fire is prohibited.




Specifications:



  Fuel Tank Capacity: 2000 ml



  Capacity of Measuring Cylinder: 125 ml



  Speed Range: 0~7500 rpm



  Injecting Times: 0~9900  Step: 100ms



  PWM Pulse: 0~20.0 ms  Step: 0.1 ms



  System Pressure: 0~0.6Mpa (adjustable)



  Time: 0~20 minute (adjustable)



  Power of Ultrasonic Cleaning: 70W



  Frequency of Ultrasonic Cleaning: 28 KHZ±0.5 KHZ



ct150_06

CT150-1_02



Support Model:




for Audi, for Australia Ford, for Benz, for BMW, for Brilliance, for Chevrolet, for Chevy, for Chrysler, for Citroen,




for Dacia, for Dadi, for Daewoo, for Daihatsu, for Demo, for Fiat,for Ford, for GM, for Holden,




for Honda, for Hyundai, for Isuzu, for Jaguar, for Kia, for Lancia, for Land Rover, for Mahindra, for Maruti, for Mazda, for





Mitsubish, for Nissan, for Opel,




for Peugeot, for Porsche, for Renault, for Romeo, for Rover, for Saab, for Seat, for Skoda,




for Smart, for Subaru, for Suzuki, for Tata, for Toyota, for Volvo, for VW, for Yamaha, etc.





ct150_07

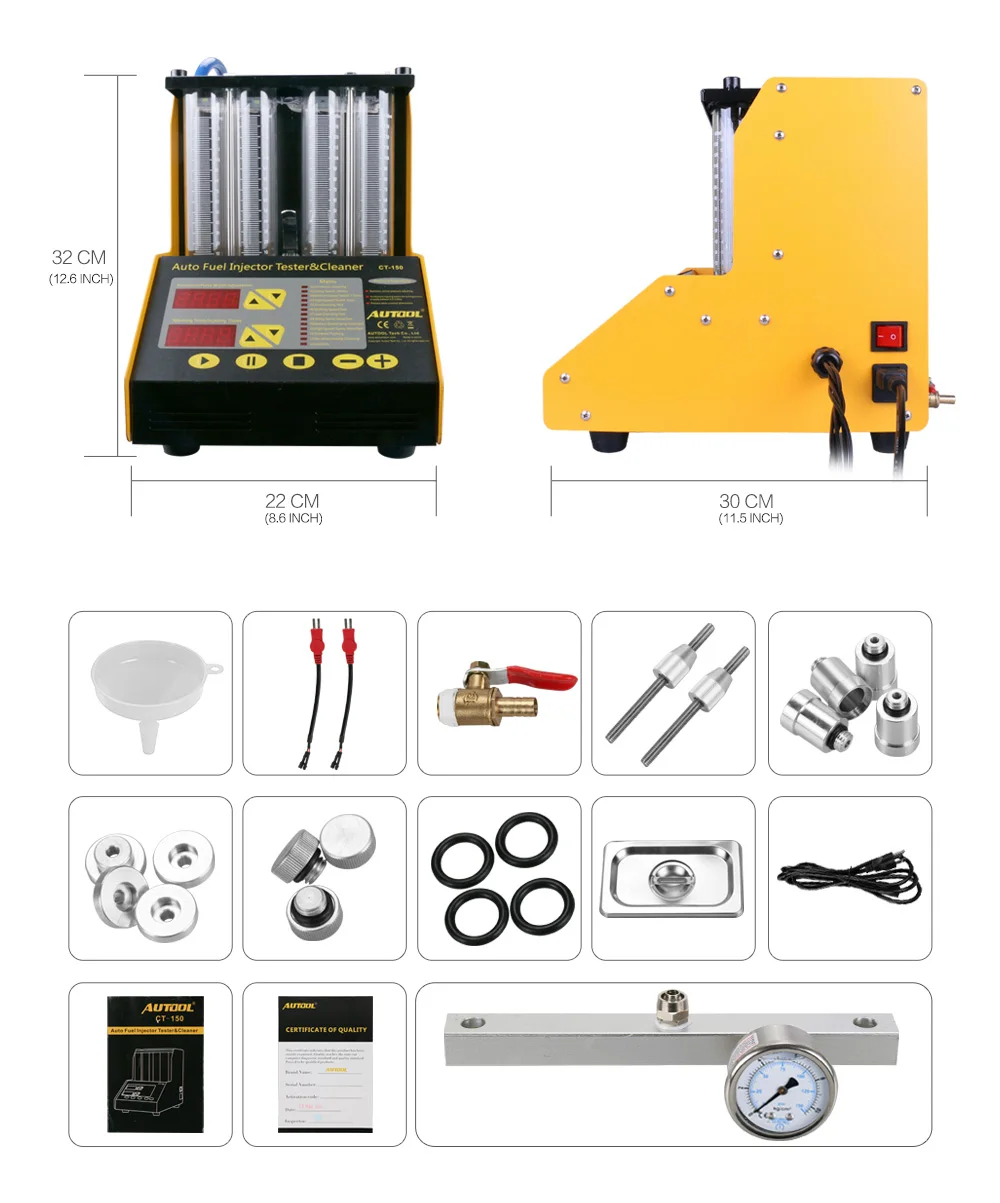

Package include:




1 set x CT150 unit
