Oписание продукта

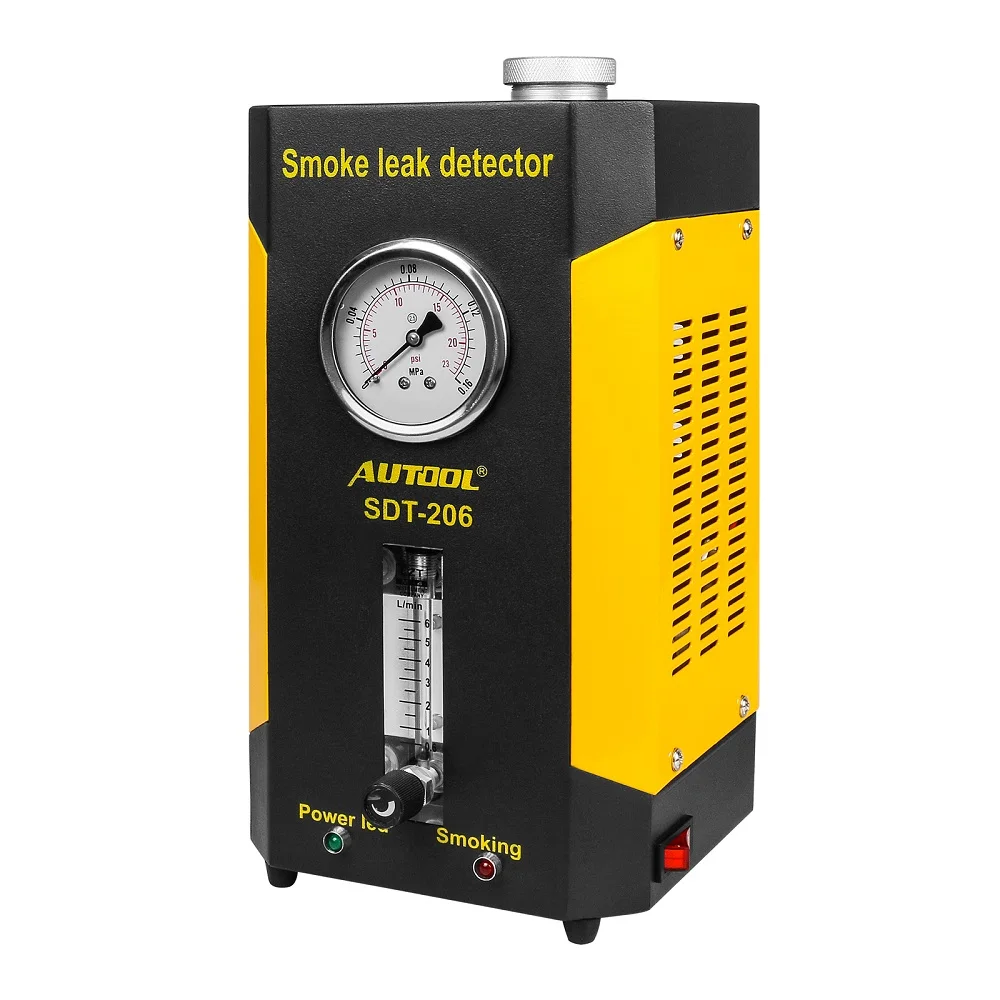

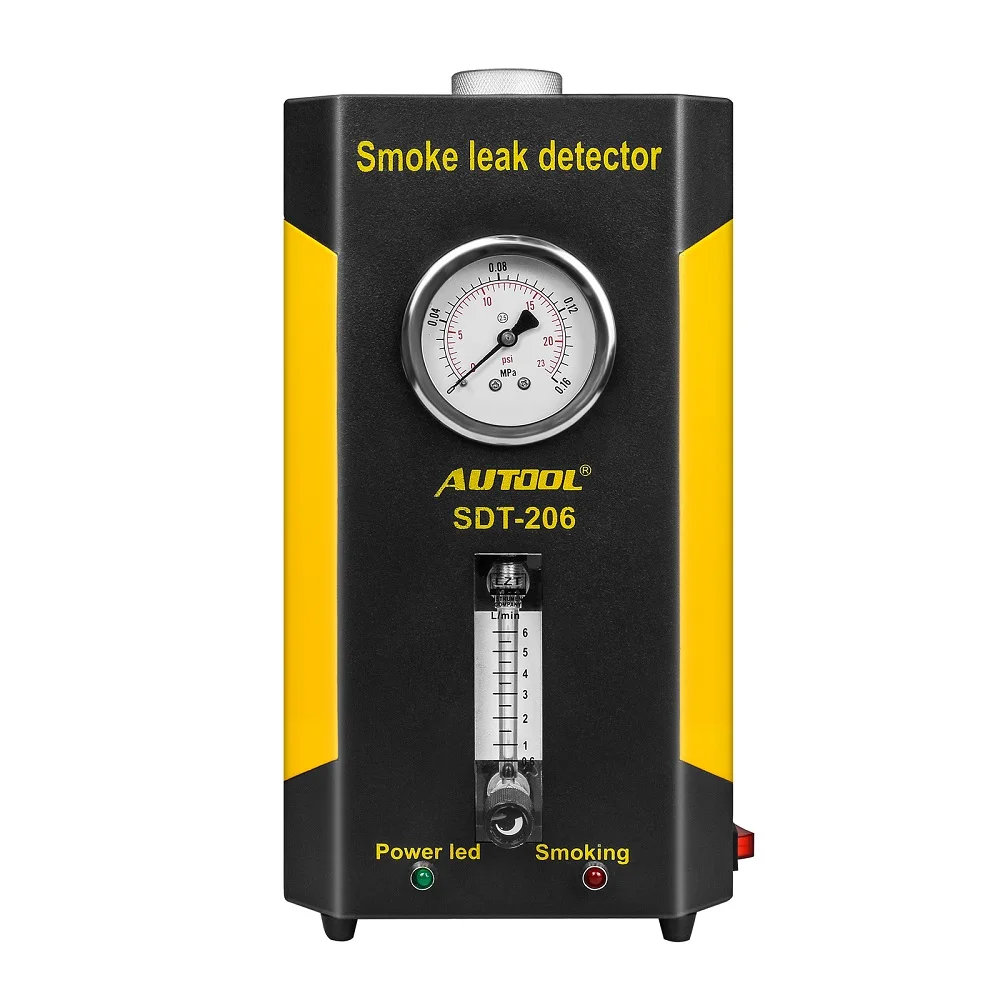

Smoke Detector AUTOOL SDT-206 Leak Detector of Pipe Systems except EVAP for all Vehicle Smoke leakage Diagnostic Tester

406bea81-0b9e-486f-b15a-0c75629185c3
4b7fc3fd-4b28-4304-bcb8-c0833613541c
SDT-206 is designed for detecting the leakage of pipe systems on cars, motorcycles, such as fuel pipe, air intake system and cooling tank.

SDT-206 is for all pipe systems except EVAP.

5ee842ba-10ab-4744-8a66-64fbe513f506
Cautions:

With longtime high temperature, the smoke and oil will oxidize and deteriorate. It will infect the ser-vice life of smoke generated part, so please change smoke and oil regularly.

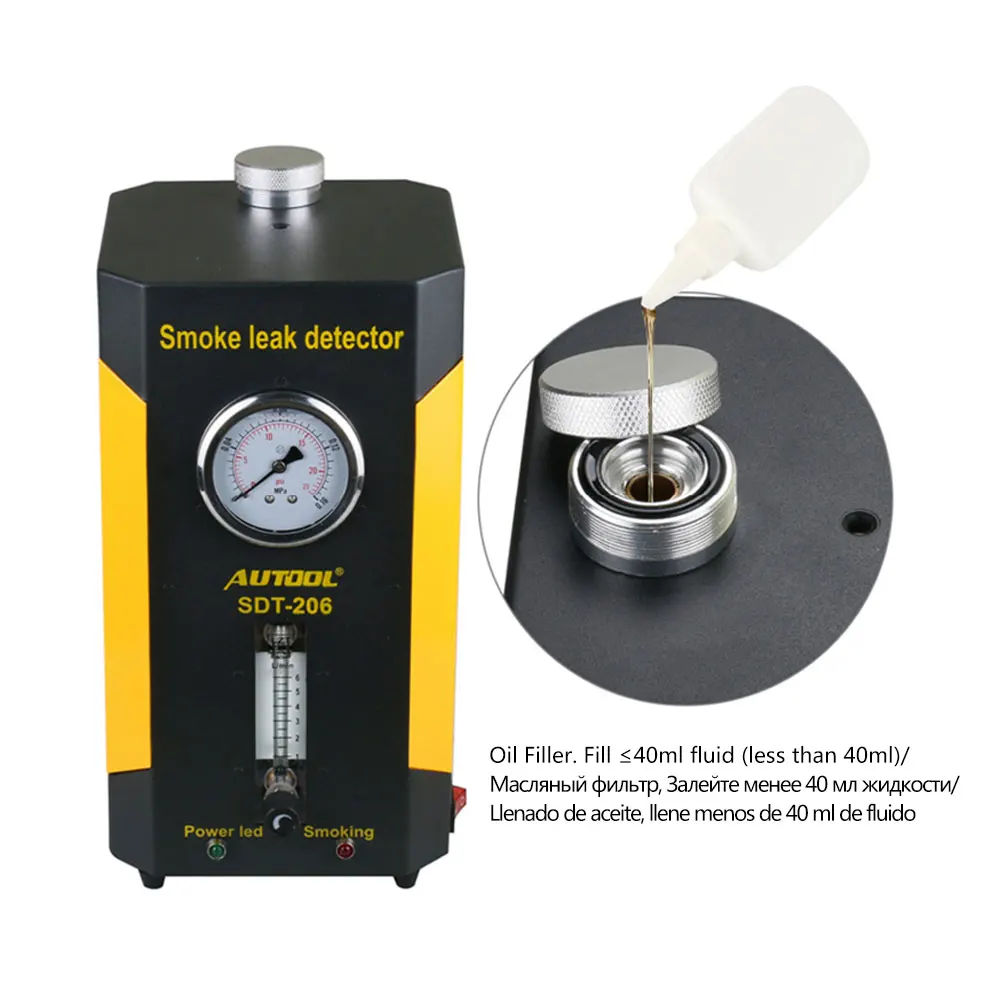

1.When you use this detector the first time, please fill 20-30ml oil, not beyond this range.
2.  When the smoke output has water drops, please replace with fresh oil.
3.  Before filling fresh oil, please pour out the remaining oil in the detector.
4.  Liquid paraffin and baby oil are OK.
Please fill fresh oil with equipped oil bottle.

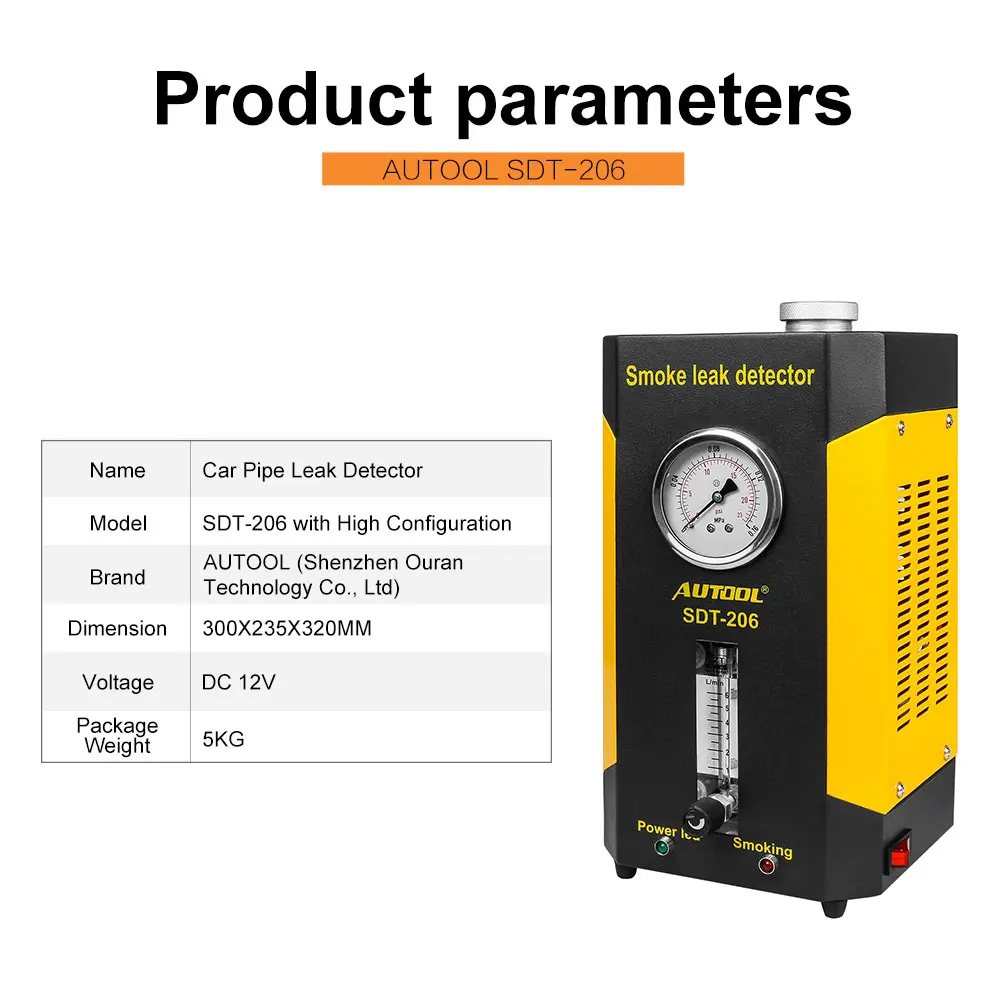

Product Information:

  Power: DC12V, vehicle battery
  Smoke output value: 6l/min
  Built-in air supply
  Controllable flow value

dd779f92-9547-4212-aab5-84f210928005
Packing List:

1. Main Unit
2. Hook (with hand-tighten nuts)
3. Smoke output tube
4. Power cable
5. Rubber stopples (with serial specification)
6. Taper stopple
7. Taper pipe
8. 30ml oil bottle
9. User manual

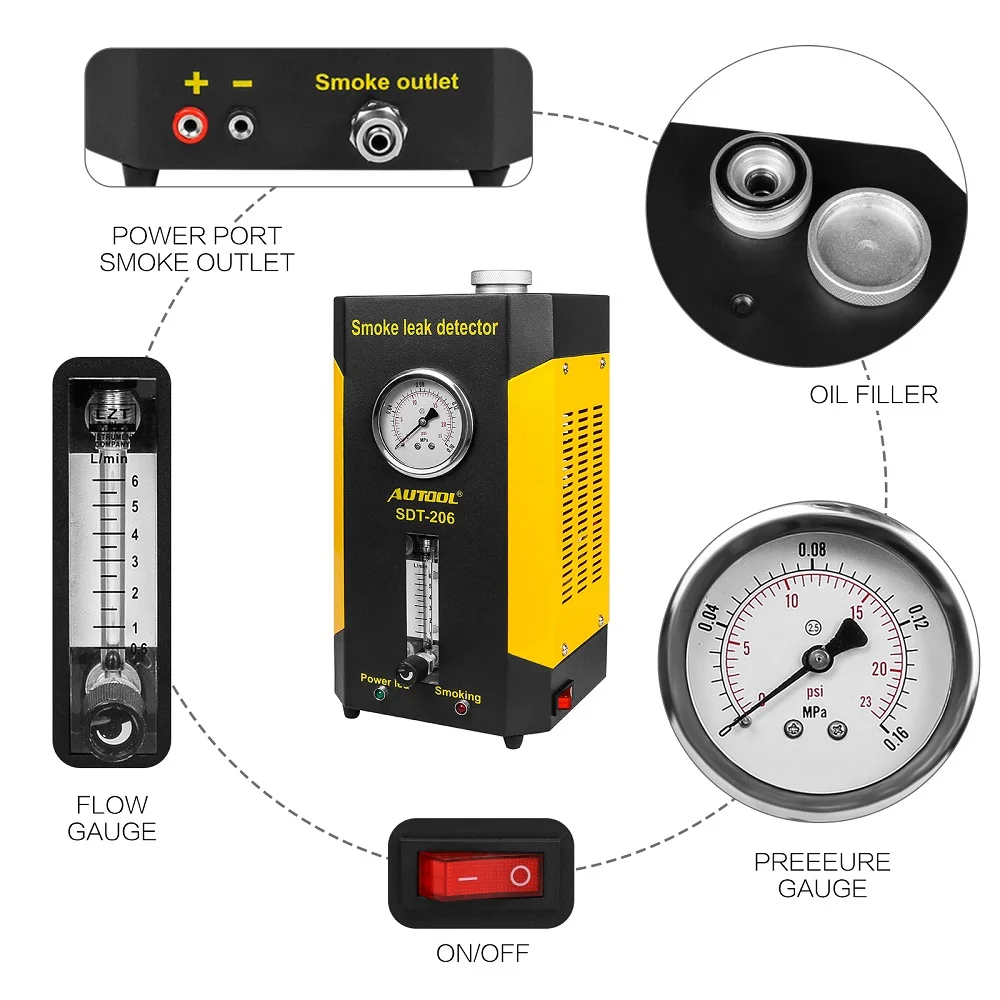

Specifications:
Hook: To hang the detector when detecting
Power Indicator: To show detector status
Working Indicator: It is lit when the detector works
Power Switch: Power it on, and the detector works
Pressure gauge: To show the pressure when detecting
Flow gauge: To adjust the smoke flow, and judge the leakage severity by flow amount change

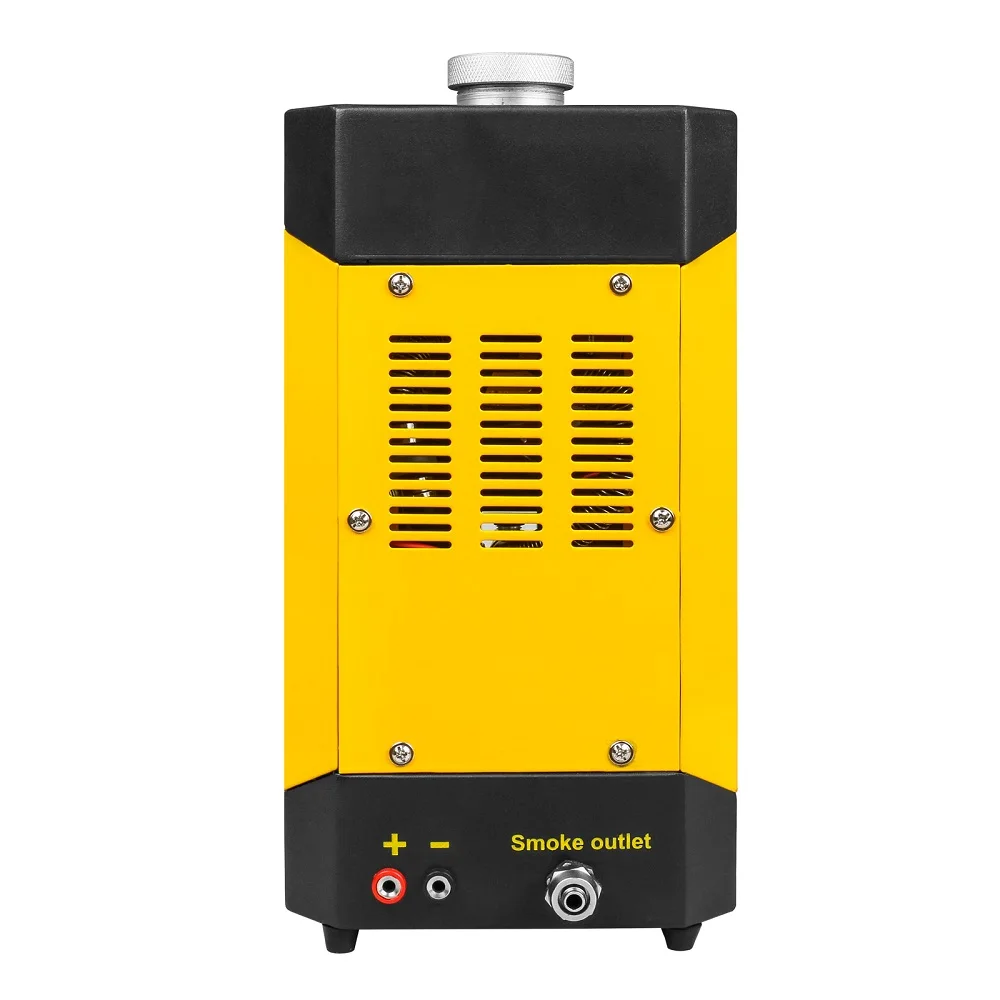

Smoke output tube: The smoke outlet which connecting with detection port
Power clip: To connect with vehicle battery.
The voltage is DC12V.
Power: DC12V, vehicle battery
Smoke output value: 6l/min
Built-in air supply
Controllable flow value
Notes:
Please do leak detection away from smoke-sensitive parts.
It can suitable for EVAP.
Do not run the detector over 5 minutes. It needs interval rest.
The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later.
Maintenance:
With longtime high temperature, the smoke and oil will oxidize and deteriorate. It will infect the service life of smoke generated part, so please change smoke and oil regularly.
Before filling new oil, please pour out the remaining oil in the detector.
When the smoke output has water drops, please replace with new oil.

How to use:

1.Open the engine cover, and hang the detector in the cover.
2.Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple.
3.Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.
4.Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way.
5.Turn on the power switch, and detector starts to work.
6.In about 3 minutes, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
7.After leak detection, please connect well the wires and pipe.


8.Notes:

* Please do leak detection away from smoke-sensitive parts.

* Do not run the detector over 8 minutes. It needs interval rest.

* The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later.

* The round parts of this detector is with temperature, be careful to avoid scalding injury.
