AC gear reducer Micro AC gear head ratio 15:1 gear box motor reducer Electrical Equipment Supplies Motor Accessories AC Motor

AC gear reducer Micro AC gear head ratio 15:1 gear box motor reducer Electrical Equipment Supplies Motor Accessories AC Motor
  • Продавец
  • Список ценUS $35.70piece
  • Продажная ценаUS $35.70piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,3 (606)

Oписание продукта

J1772 type 1 EV charger 16A  32A socket ,EV charger,electric vehicle charging station portable charger


Good news for EU(European Union)clients. No customs clearance, no tax!

(Remote area fee is not included)

It takes 10~12days+(10days wait in line )to arrive there by UPS.

DHL takes 5~7days but maybe have tax and customs clearance.

please leave message to us which shipping way you prefer.

Or we will send it as our convenience.



We have several options for the connector:

UK plug,schuko ,blue cee ,red cee ,NEMA 5-15,NEMA6-20,NEMA6-30,NEMA 10-50,AU/NZ plug
If you don\'t find the option when you place the order, please choose "other\'\' and leave message to us.
the charge current is adjuatable. for 32A charger, we set three levels: 8A 16A 32A as default
for 16A charger,we set three levels:6A 12A 16A as default.
if you want to set different levels, please contact us.
1pcs of Chinese knot  is for free! You can hang it in your car.

There  are two models of Chinese knot: in shape of hear and diamand.

We will send  whichever at random.

Khons-evse-16A-j1772-ev-portable-charger_khons-hot-sale-sae-J1771-type1-16A (1)_khons-hot-sale-sae-J1771-type1-16A_khons-hot-sale-sae-J1771-type1-pin (1)_khons-hot-sale-sae-J1771-type1-pin_


The 240V portable charger lets you choose between 8-30 amps of power,

and can charge compatible EVs up 5 times faster than a standard 110V outlet.
The compact and durable design of the khons portable charger will withstand nearly any environment
 while taking up minimal space. Inside and out, the KHONS portable charger is versatile, reliable, and efficient.
• SAE J1772 plug-to-car, NEMA 6-20 plug-to-wall
• Level 2 Charging, 240V, 16A, 3.84 kW  /240V ,32A , 7.6KW
• Weatherproof (IP 54), 18 foot cord, 5 lbs.
  Standards SAE J1772
  Voltage 220V AC
  Current 8A/16A/32A AC
  Frequency 50Hz/60Hz
  Insulation Resistance >10MΩ
  Storage Temperature -40℃ to +80℃
  Operating Humidity 5%~95%RH(non-condensing)
  Enclosure In-Cable box: IP 54
  Charging connector:IP 54
  Dimension 200mm(L)*90mm(W)*40.5mm(H)
  Weight 3kg
blue CEE

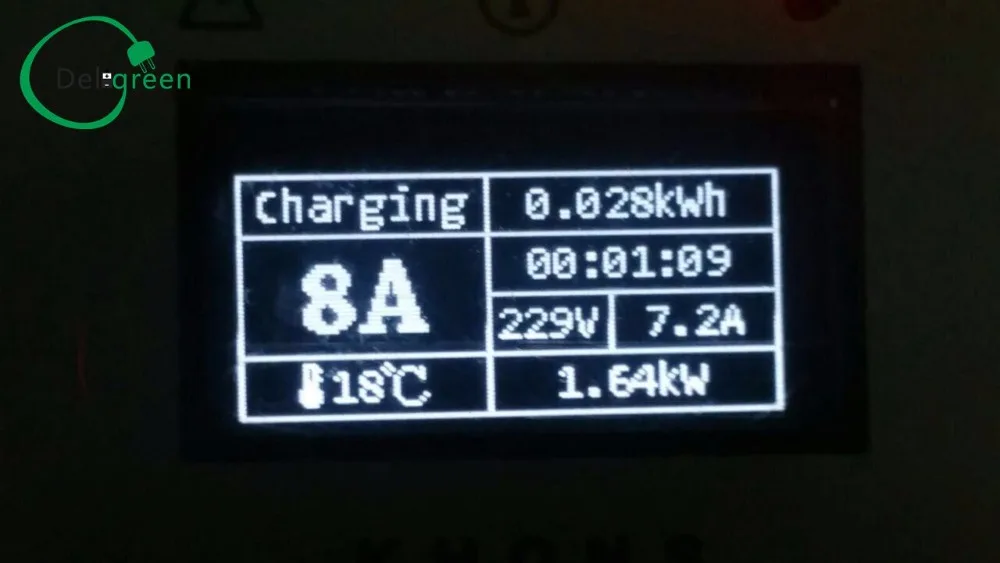

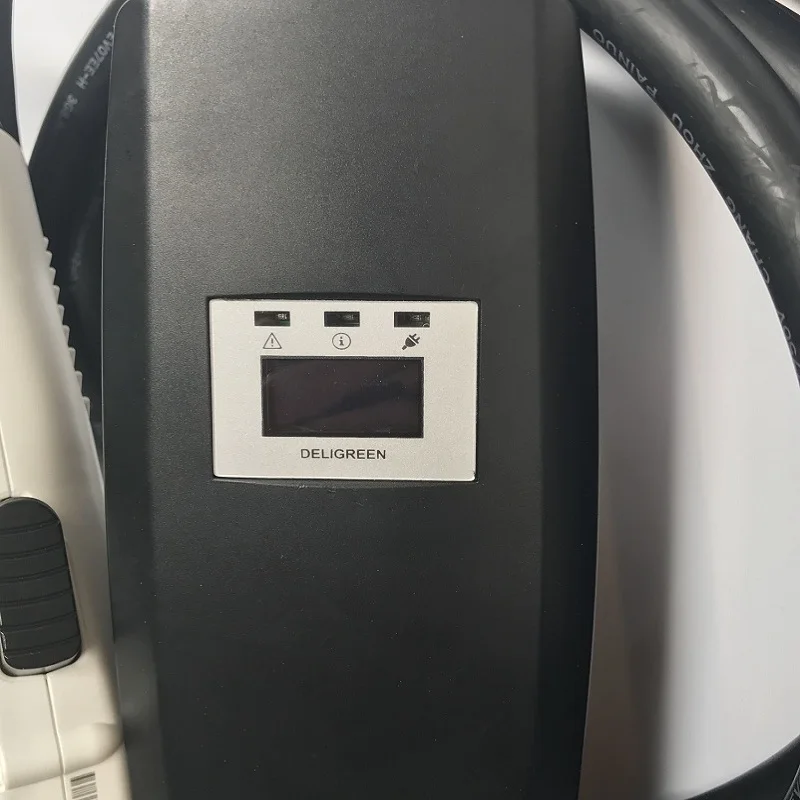

Our charger has LCD. This is one of the big advantages with other competitors.
You might find other cheaper ones but they have no LCD!
How to start charge
Attentions before use
check if there are the following abnormal conditions : the charging device is damaged ,rust or
the surface of charging port,cable,control box, wire or the plug is damaged
A.Take out the charging cable and put the plug into the socket steadily
B.Check the maximum current of the power socket . Change the output current according to the
current power. Specific operation as follows:
In the last minute of charging, the green light is often bright. Hold the control box, and make the
indicating lights oppose yourself, then continue shaking fast it more than 5 times to make a
current switch.(you can make a current switch in each charging)
C.Please pull off the protect cover and insert the vehicle terminal plug into the vehicle terminal
charger completely.
D.When the charging device automatically run, the status indicator (green lights) will flash.the
red light is on and the screen shows it is being charged. The charge current value is shown on
the screen.

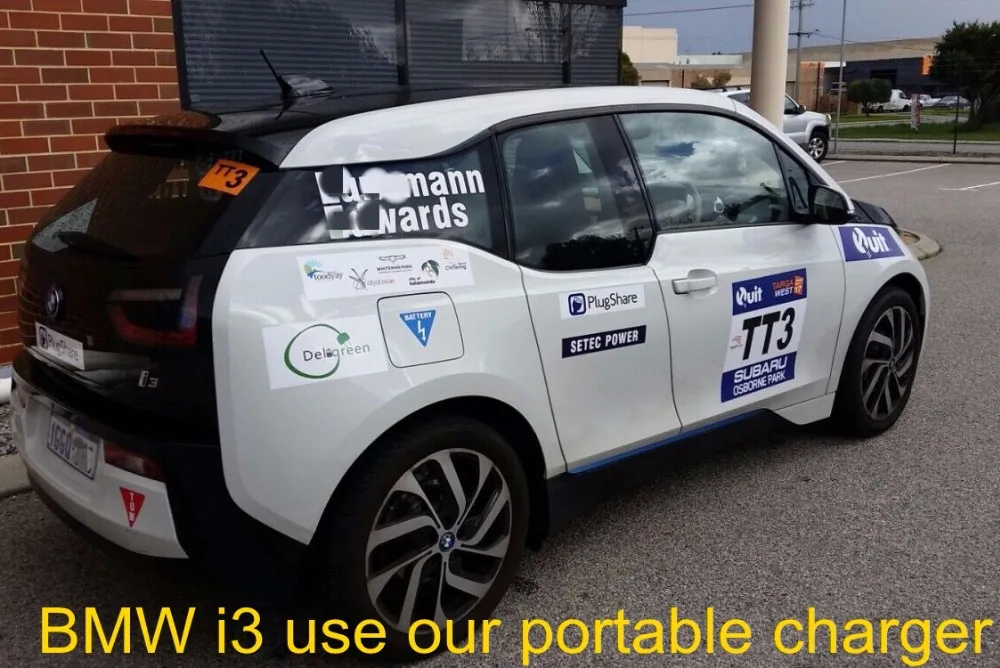

Apply to vehicle

Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...












This charger is J1772 type 1 plug. Besides type 1 plug, we have 62196 type 2 plug.

Please check which plug is suitable for your car before ordering.
